Model Whirlpool 8614^0A REFRIGERATOR – Common Parts & Diagrams

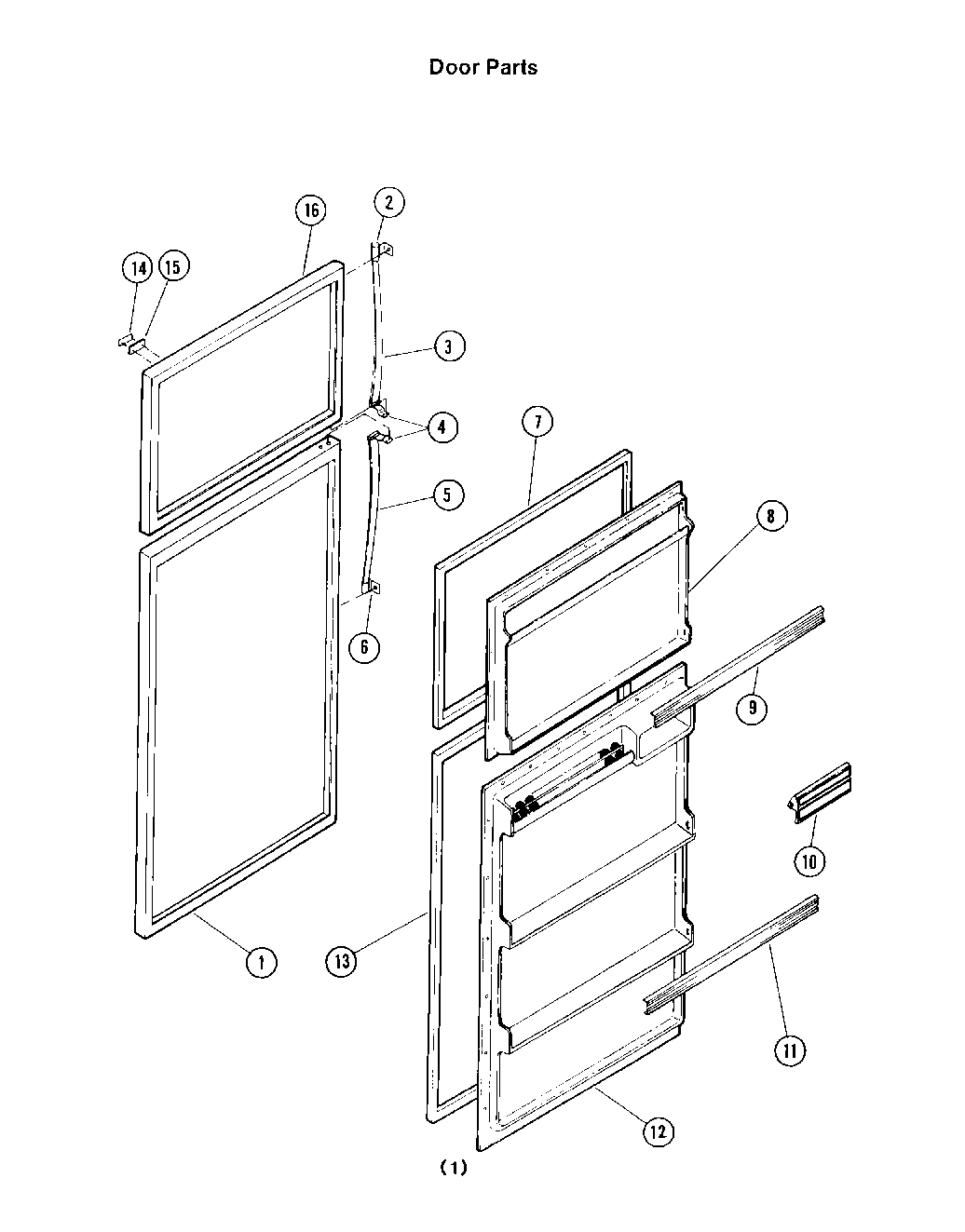

02 - DOOR PARTS

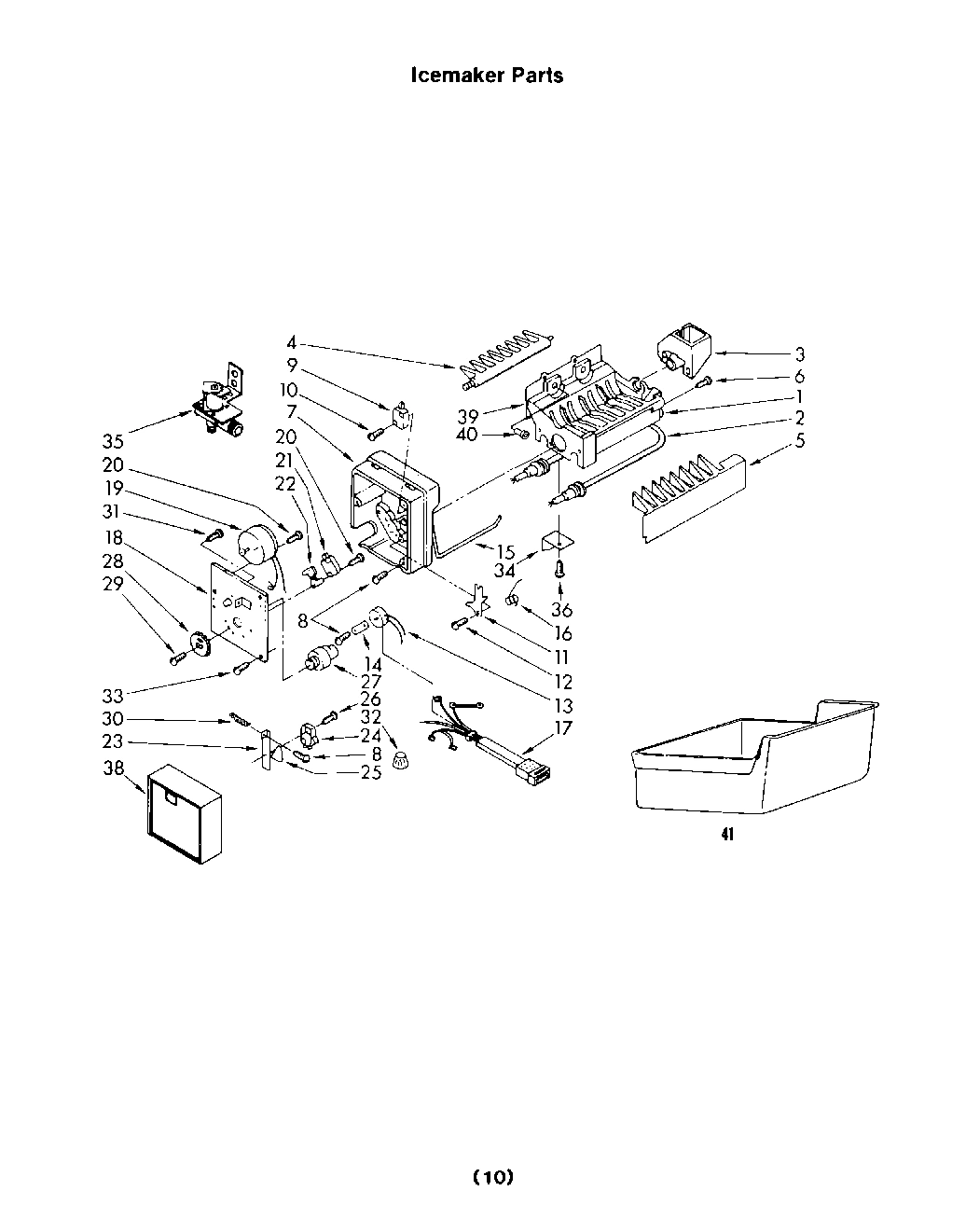

05 - ICE MAKER

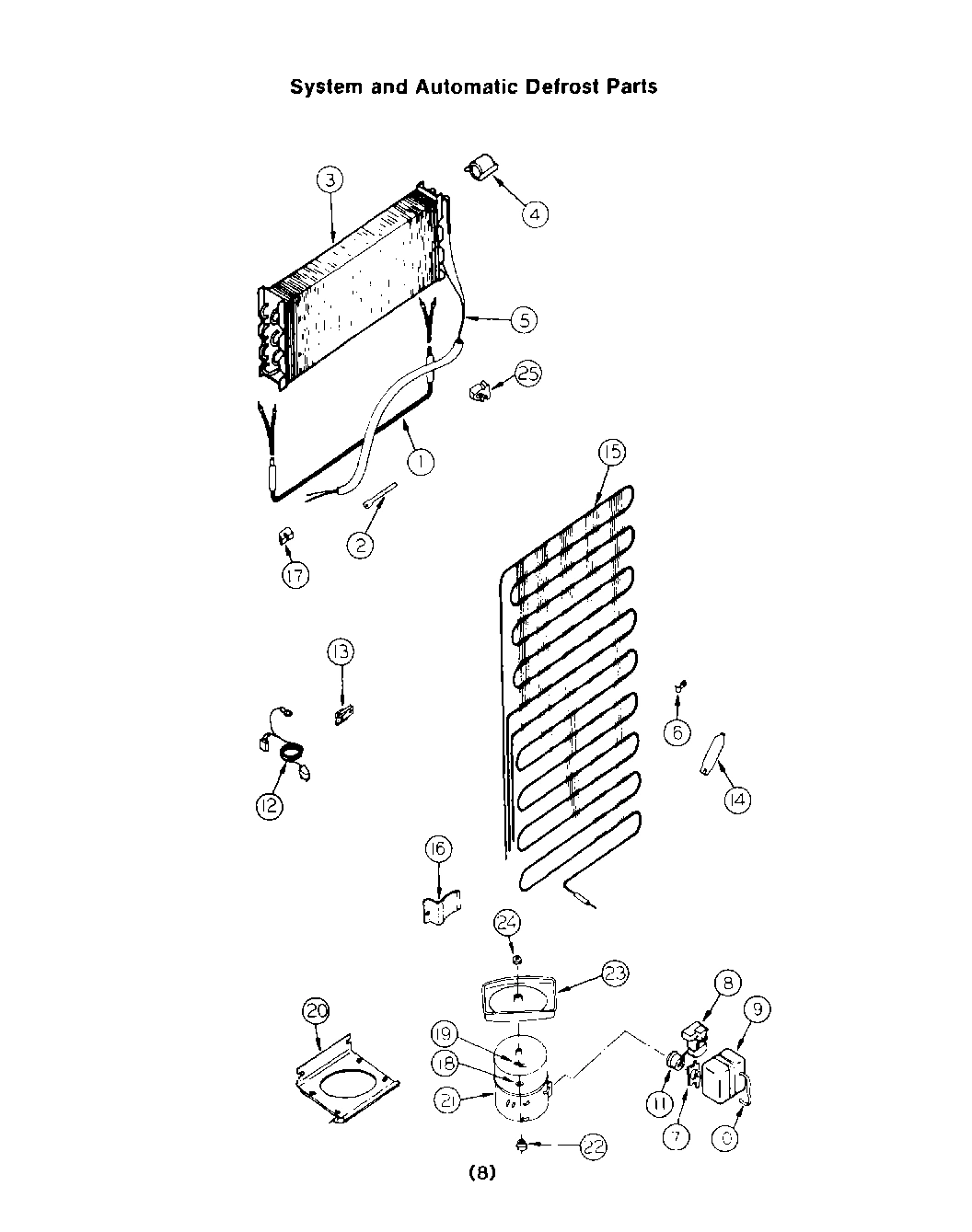

04 - SYSTEM AND AUTOMATIC DEFROST

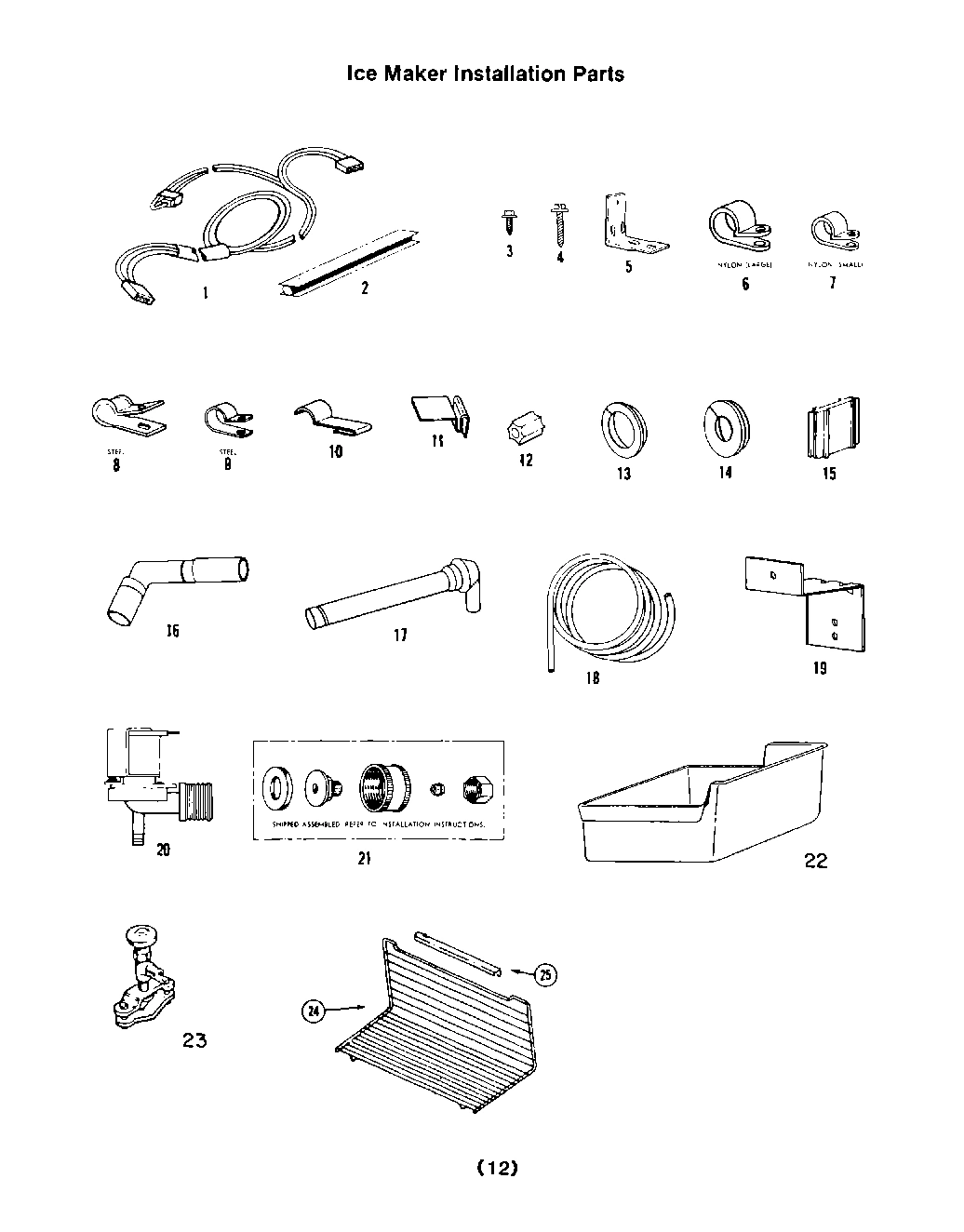

06 - IM INSTALLATION PARTS

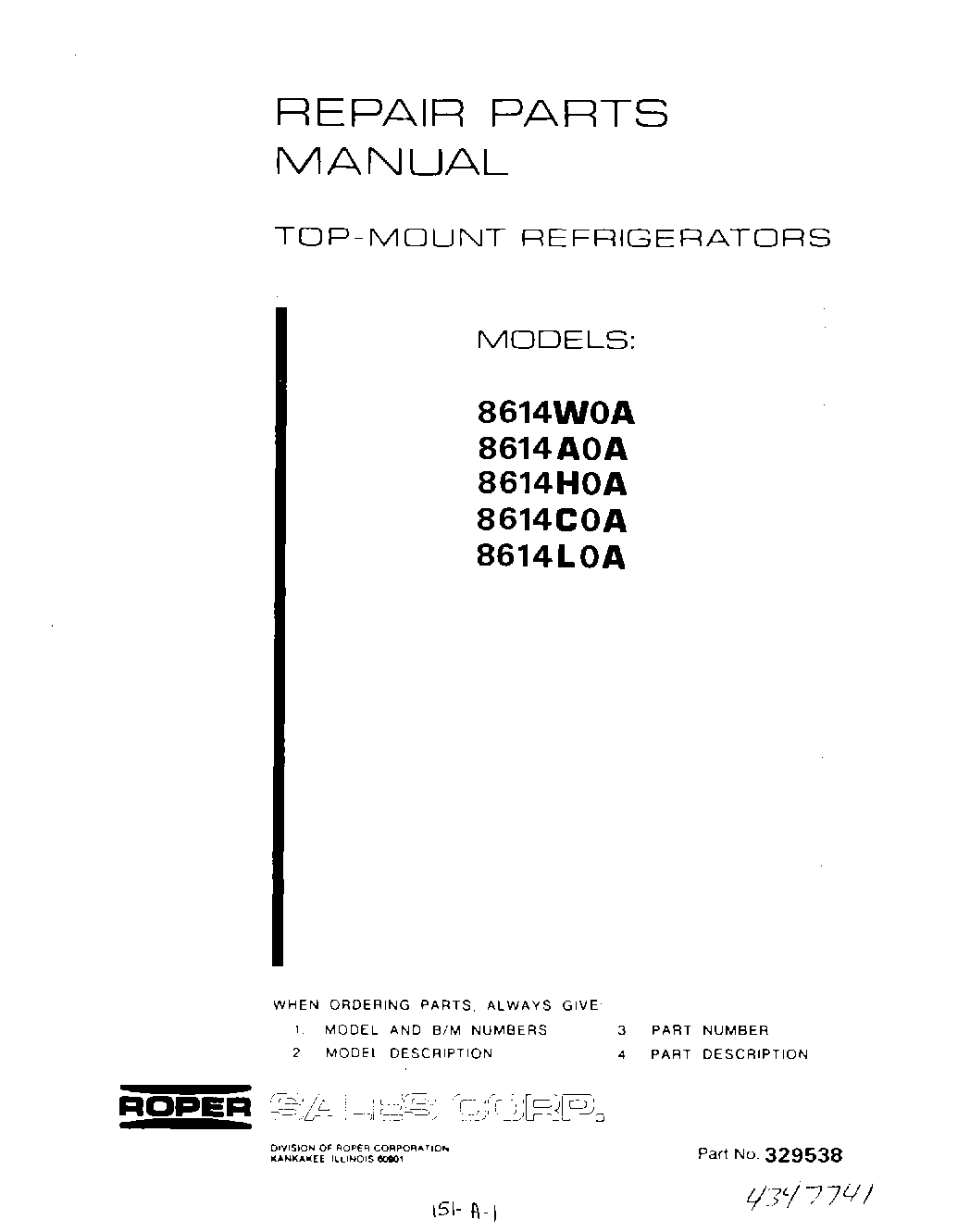

01 - COVER

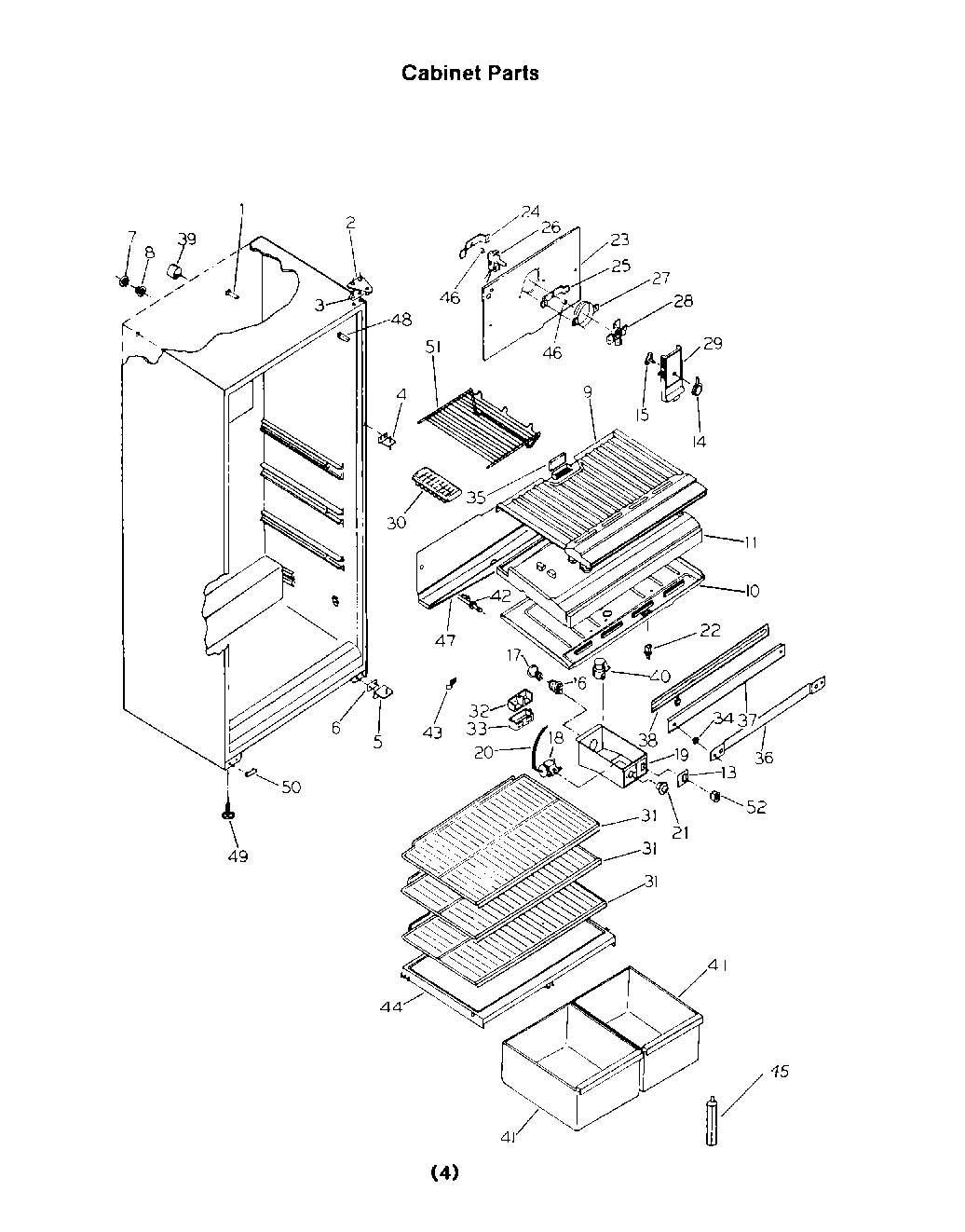

03 - CABINET PARTS
Common parts from model Whirlpool 8614^0A REFRIGERATOR
Bearing - Hinge - Freezer WPL 790001 Contact Us For Availability
Screw - Handles WPL 790004 Contact Us For Availability
Tape - Frame to Door WPL 790015 Contact Us For Availability
Button-Plug R.H. Handle Mounting Holes - Whit WPL 790018 Contact Us For Availability
Button - Plug - L.H. Upper Hinge Bearing - Wh WPL 790019 Contact Us For Availability
Kit - Door Conversion - White WPL 790020 Contact Us For Availability
Button-Plug R.H. Handle Mounting Holes - Avoc WPL 790172 Contact Us For Availability
Button-Plug R.H. Handl WPL 790173 Contact Us For Availability
WPL 790174 WPL 790174 Contact Us For Availability
WPL 790175 WPL 790175 Contact Us For Availability
WPL 790176 WPL 790176 Contact Us For Availability
WPL 790177 WPL 790177 Contact Us For Availability
WPL 790178 WPL 790178 Contact Us For Availability
WPL 790179 WPL 790179 Contact Us For Availability
WPL 790180 WPL 790180 Contact Us For Availability
WPL 790181 WPL 790181 Contact Us For Availability
WPL 790182 WPL 790182 Contact Us For Availability
WPL 790183 WPL 790183 Contact Us For Availability
WPL 790082 WPL 790082 Contact Us For Availability
WPL 790024 WPL 790024 Contact Us For Availability
WPL 790025 WPL 790025 Contact Us For Availability
WPL 790026 WPL 790026 Contact Us For Availability
WPL 790027 WPL 790027 Contact Us For Availability
WPL 790030 WPL 790030 Contact Us For Availability
WPL 790031 WPL 790031 Contact Us For Availability
WPL 790033 WPL 790033 Contact Us For Availability
WPL 790034 WPL 790034 Contact Us For Availability
WPL 790035 WPL 790035 Contact Us For Availability
WPL 790041 WPL 790041 Contact Us For Availability
WPL 790047 WPL 790047 Contact Us For Availability
WPL 790051 WPL 790051 Contact Us For Availability
WPL 790053 WPL 790053 Contact Us For Availability
WPL 790058 WPL 790058 Contact Us For Availability
WPL 790063 WPL 790063 Contact Us For Availability
WPL 790071 WPL 790071 Contact Us For Availability
WPL 790078 WPL 790078 Contact Us For Availability
WPL 790089 WPL 790089 Contact Us For Availability
WPL 790090 WPL 790090 Contact Us For Availability
WPL 790091 WPL 790091 Contact Us For Availability
WPL 790092 WPL 790092 Contact Us For Availability
WPL 790093 WPL 790093 Contact Us For Availability
WPL 790094 WPL 790094 Contact Us For Availability
WPL 790095 WPL 790095 Contact Us For Availability
WPL 790096 WPL 790096 Contact Us For Availability
WPL 790097 WPL 790097 Contact Us For Availability
WPL 790098 WPL 790098 Contact Us For Availability
WPL 790184 WPL 790184 Contact Us For Availability
WPL 790185 WPL 790185 Contact Us For Availability
WPL 790186 WPL 790186 Contact Us For Availability
WPL 790187 WPL 790187 Contact Us For Availability
WPL 790188 WPL 790188 Contact Us For Availability
WPL 790189 WPL 790189 Contact Us For Availability
WPL 790190 WPL 790190 Contact Us For Availability
WPL 790191 WPL 790191 Contact Us For Availability
1
Exterior Panel - Refrigerator - White WPL 790000 Contact Us For Availability
1
Exterior Panel - Refrigerator - Avocado WPL 790164 Contact Us For Availability
1
Exterior Panel - Refrigerator - Harvest WPL 790165 Contact Us For Availability
1
Exterior Panel - Refrigerator - Coffee WPL 790166 Contact Us For Availability
1
Exterior Panel - Refrigerator - Almond WPL 790167 Contact Us For Availability
1
Mold and Heater Assembly (Includes Key No.2) WPL 790263 Contact Us For Availability
1
xHeater - Defrost WPL 790099 Contact Us For Availability
1
Wiring Harness WPL 790238 Contact Us For Availability
1
Support - Coil Cover WPL 790021 Contact Us For Availability
2
xHeater, Mold WPL 790264 Contact Us For Availability
2
Strap - Heater WPL 790100 Contact Us For Availability
2
Strip - Sealing WPL 790239 Contact Us For Availability
2
Bracket - Hinge Top WPL 790022 Contact Us For Availability
3
Bearing and Inlet WPL 790265 Contact Us For Availability
3
xEvaporator WPL 790101 Contact Us For Availability
3
Shim - Upper Hinge WPL 790028 Contact Us For Availability
4
End - Handle WPL 790002 Contact Us For Availability
4
Ejector WPL 790266 Contact Us For Availability
4
xThermostat - Defrost WPL 790102 Contact Us For Availability
4
Screw - Ice Maker Mounting WPL 790240 Contact Us For Availability
4
xBracket - Center Hinge WPL 790029 Contact Us For Availability
5
Grip - Handle - Refrigerator WPL 790003 Contact Us For Availability
5
Suction & Cap Tube WPL 790103 Contact Us For Availability
5
Clamp - Harness Mounting WPL 790111 Contact Us For Availability
6
End - Handle Bottom Refrigerator WPL 790005 Contact Us For Availability
6
Clamp - Tube WPL 790104 Contact Us For Availability
6
Clamp - Wiring Harness WPL 790241 Contact Us For Availability
6
Shim - Lower Hinge WPL 790036 Contact Us For Availability
7
Gasket - Freezer Door WPL 790006 Contact Us For Availability
7
Support WPL 790269 Contact Us For Availability
7
Clip - Overload WPL 790105 Contact Us For Availability
7
Ferrule - Inner WPL 790037 Contact Us For Availability
8
Interior Panel - Freezer WPL 790007 Contact Us For Availability
8
Screw, 8-32 x 1 WPL 790270 Contact Us For Availability
8
Relay WPL 790106 Contact Us For Availability
8
Clamp - Steel - Tube Clamp WPL 790243 Contact Us For Availability
8
Ferrule - Outer WPL 790038 Contact Us For Availability
9
Rack - Freezer Door WPL 790009 Contact Us For Availability
9
xSwitch, S.P.D.T. WPL 790271 Contact Us For Availability
9
Cover - Terminal WPL 790107 Contact Us For Availability
9
Clamp - Inlet Tube to Rear Panel WPL 790244 Contact Us For Availability
9
Bottom - Freezer WPL 790039 Contact Us For Availability
10
Door - Butter WPL 790010 Contact Us For Availability
10
Clamp - Cover WPL 790108 Contact Us For Availability
10
Clip - Harness Location WPL 790245 Contact Us For Availability
10
Top - Refrigerator WPL 790040 Contact Us For Availability
11
Rack - Refrigerator WPL 790011 Contact Us For Availability
11
Lever Arm WPL 790273 Contact Us For Availability
11
Overload WPL 790109 Contact Us For Availability
11
Clip - Filler Tube WPL 790246 Contact Us For Availability
11
Divider - Compartment WPL 790042 Contact Us For Availability
12
Interior Panel - Refrigerator WPL 790012 Contact Us For Availability
12
Shoulder Screw WPL 790274 Contact Us For Availability
12
Cord - Service WPL 790110 Contact Us For Availability
12
Nut - Inlet to Solenoid Valve WPL 790247 Contact Us For Availability
13
xGasket - Refrigerator Door WPL 790013 Contact Us For Availability
13
Thermostat WPL 790275 Contact Us For Availability
13
Bushing - Coil Cover WPL 790248 Contact Us For Availability
14
Label - Nameplate WPL 790014 Contact Us For Availability
14
Clamp WPL 790276 Contact Us For Availability
14
xDryer WPL 790112 Contact Us For Availability
14
Plug - Rear Panel & Coil Cover WPL 790249 Contact Us For Availability
14
Knob - Damper Control WPL 790045 Contact Us For Availability
15
Nameplate WPL 790016 Contact Us For Availability
15
Shut-Off Arm WPL 790277 Contact Us For Availability
15
xCondenser WPL 790113 Contact Us For Availability
15
Adapter Plug - Rear Panel WPL 790250 Contact Us For Availability
15
Damper - Fan Cover WPL 790046 Contact Us For Availability
16
Exterior Panel - Freezer - White WPL 790017 Contact Us For Availability
16
Exterior Panel - Freezer - Avocado WPL 790168 Contact Us For Availability
16
Exterior Panel - Freezer - Harvest WPL 790169 Contact Us For Availability
16
Exterior Panel - Freezer - Coffee WPL 790170 Contact Us For Availability
16
Exterior Panel - Freezer - Almond WPL 790171 Contact Us For Availability
16
Spring, Shut Off Arm WPL 790278 Contact Us For Availability
16
Bracket - Condenser Mounting WPL 790114 Contact Us For Availability
16
Tube - Water Fill (Plastic) WPL 790251 Contact Us For Availability
16
xSocket - Light WPL 790048 Contact Us For Availability
17
Wiring Harness WPL 790279 Contact Us For Availability
17
Block - Evaporator L.H. WPL 790115 Contact Us For Availability
17
Tube - Water Inlet WPL 790252 Contact Us For Availability
17
Bulb - Light WPL 790049 Contact Us For Availability
18
Mounting Plate WPL 790280 Contact Us For Availability
18
Washer - Compressor Mounting WPL 790116 Contact Us For Availability
18
Tube - Valve to Ice Maker WPL 790253 Contact Us For Availability
18
xCold Control WPL 790050 Contact Us For Availability
19
xMotor WPL 790281 Contact Us For Availability
19
Clip - Compressor Mounting WPL 790117 Contact Us For Availability
19
Bracket - Valve to Rear Panel WPL 790254 Contact Us For Availability
19
Box - Control WPL 790052 Contact Us For Availability
20
Screw, 4-40 x 1 WPL 790282 Contact Us For Availability
20
Plate - Compressor Mounting WPL 790118 Contact Us For Availability
20
Valve - Solenoid WPL 790255 Contact Us For Availability
20
Tube - Plastic WPL 790054 Contact Us For Availability
21
xSwitch, S.P.D.T. WPL 790283 Contact Us For Availability
21
xCompressor WPL 790119 Contact Us For Availability
22
Spacer, Holding Switch WPL 790284 Contact Us For Availability
22
Container - Ice WPL 790257 Contact Us For Availability
22
Grommet - Compressor Mounting WPL 790120 Contact Us For Availability
22
xSwitch - Light WPL 790056 Contact Us For Availability
23
Plate, Valve Switch WPL 790285 Contact Us For Availability
23
Defrost Pan WPL 790121 Contact Us For Availability
23
Saddle Valve Kit WPL 790258 Contact Us For Availability
23
Cover - Coil WPL 790057 Contact Us For Availability
24
xSwitch, S.P.S.T. WPL 790286 Contact Us For Availability
24
Nut - Lock WPL 790122 Contact Us For Availability
24
Shelf - Ice Maker WPL 790259 Contact Us For Availability
24
Screw - Supports WPL 790261 Contact Us For Availability
25
Screw - Clamp - Suction & Cap Tube WPL 790008 Contact Us For Availability
25
Insulator - Switch WPL 790287 Contact Us For Availability
25
Block - Evaporator R.H. WPL 790123 Contact Us For Availability
25
Hanger - Shelf WPL 790262 Contact Us For Availability
25
Bracket - Front Motor Mounting WPL 790060 Contact Us For Availability
26
Screw, 4-40 x 3/4 WPL 790288 Contact Us For Availability
26
xMotor - Blower WPL 790061 Contact Us For Availability
27
Cam WPL 790289 Contact Us For Availability
27
Ring - Fan Orifice WPL 790062 Contact Us For Availability
28
Gear WPL 790290 Contact Us For Availability
29
Screw, Gear WPL 790291 Contact Us For Availability
29
Cover - Fan WPL 790065 Contact Us For Availability
30
Spring WPL 790292 Contact Us For Availability
30
Switch - Slide WPL 790066 Contact Us For Availability
31
Screw, 8-32 x 1/4 WPL 790293 Contact Us For Availability
31
Shelf - Sliding WPL 790067 Contact Us For Availability
32
Connector, Wire WPL 790294 Contact Us For Availability
32
Deflector - Air WPL 790068 Contact Us For Availability
33
Screw, 8-18 x 1/2 WPL 790295 Contact Us For Availability
33
Cover - Air Deflector WPL 790069 Contact Us For Availability
34
Bracket WPL 790296 Contact Us For Availability
34
Spacer - Mullion Mounting WPL 790070 Contact Us For Availability
35
xSolenoid, Valve WPL 790297 Contact Us For Availability
35
Pan - Foam WPL 790072 Contact Us For Availability
36
Screw, 8-16 x 3/8 WPL 790268 Contact Us For Availability
36
Strap - Mullion Mounting WPL 790073 Contact Us For Availability
37
Mullion - White WPL 790074 Contact Us For Availability
37
Mullion - Avocado WPL 790192 Contact Us For Availability
37
Mullion - Harvest WPL 790193 Contact Us For Availability
37
Mullion - Coffee WPL 790194 Contact Us For Availability
37
Mullion - Almond WPL 790195 Contact Us For Availability
38
Cover WPL 790242 Contact Us For Availability
38
Heater - Mullion WPL 790075 Contact Us For Availability
39
Wiring Shield WPL 790298 Contact Us For Availability
39
xTube - In Ferrule WPL 790076 Contact Us For Availability
40
Eyelet WPL 790136 Contact Us For Availability
40
xTimer - Defrost WPL 790077 Contact Us For Availability
41
Pan - Storage WPL 790079 Contact Us For Availability
42
xTube - Defrost Drain WPL 790080 Contact Us For Availability
43
Clamp - Tube WPL 790081 Contact Us For Availability
44
Cover - Crisper WPL 790083 Contact Us For Availability
45
Bushing - Motor Mounting WPL 790084 Contact Us For Availability
46
Trough - Drain WPL 790085 Contact Us For Availability
47
Trim - Cabinet Corner - White WPL 790086 Contact Us For Availability
47
Trim - Cabinet Corner - Avocado WPL 790196 Contact Us For Availability
47
Trim - Cabinet Corner - Harvest WPL 790197 Contact Us For Availability
47
Trim - Cabinet Corner - Coffee WPL 790198 Contact Us For Availability
47
Trim - WPL 790199 Contact Us For Availability
48
WPL 790087 WPL 790087 Contact Us For Availability
49
WPL 790088 WPL 790088 Contact Us For Availability
× ![]()
